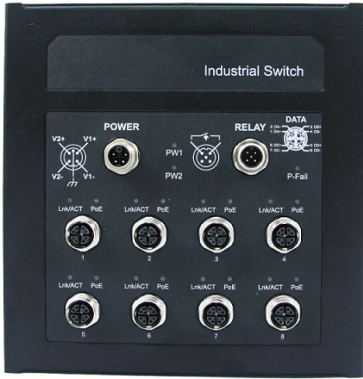

PM-3080B-M12
Rugged Industrial 8-port M12 Gigabit PoE Switch
This rugged designed high power 8 port M12 PoE Switch is equipped with our high efficiency Cold Design technology which boosts input voltage from 24VDC to 55VDC for your moving bus, train and other PD applications. It is equipped with 8 x 30W 10/100/1000M M12 PSE, with M12 Redundant Power and M12 Relay. It has been rigorously tested for your security, transportation, and telco applications.
Specifications
| IEEE Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE 802.3x Flow Control and Back Pressure, | |
| IEEE 802.3af PoE | |
| IEEE 802.3at PoE+ | |
| Switch Architecture | Back-plane (Switching Fabric): 16Gbps |
| Data Processing | Store and Forward |
| Flow Control | IEEE 802.3x Flow Control and Back Pressure |
| Jumbo Frame | 10KB |
| MAC address Table Size | 11K |
| Packet Buffer Size | 2Mbits |
| Network Connector | 8 x M12, 8-pin X-coded female connector, 10/100/1000M auto negotiation, Auto MDI/MDI-X function, Full/Half duplex |
| 8 x M12 Giga PoE+ 802.3at/af PSE port, 30W per port | |
| Power Connector | 1 x M12, 5-pin K-coded male connector |
| Relay Connector | 1 x M12, 5-pin A-coded male connector |
| Network Cable | UTP/STP Cat.5e or above Cable |
| EIA/TIA-568 (100m) | |
| Protocol | CSMA/CD |
| LED | PW1 (Green): ON－Power is detected |
| PW2 (Green): ON－Power is detected | |
| P-Fail (Amber): ON－Connect only PW1 or PW2 | |
| OFF－Both PW1 and PW2 are connected | |
| M12 port (1~8): | |
| Lnk/ACT (Green): | |
| ON－M12 port is detected | |
| Flashing－M12 data is transmitting/receiving | |
| PoE (Green): | |
| ON－PSE is activated and PD is detected | |
| Flashing－PSE is detecting PD | |
| Reserve polarity protection | Present |
| Overload current protection | Present |
| Power Supply | P1 and P2 for Redundant Power DC 24V-56V |
| Power Consumption | 5W@24 VDC full load, Without PoE |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1 A @24VDC, |
| Relay in “open” circuit mode when PW1 and PW2 are connected. In “short” circuit mode when only one power supply is connected. | |
| PoE Power | PoE power per port 30watts |
| Maximum total power: | |
| 200Watts at 56VDC input, | |
| 100Watts at 24VDC input | |
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -40°C to 85°C |
| MTBF (mean time between failure) | 510,037 hrs (Telcordia (Bellcore), GB) at 50°C |
| Housing | IP40 Protection |
| Case Dimension (L x W x D) | 215 x 170 x 37.7 mm (L x W x D) |
| Weight | 1.41kg (with brackets) |
| Installation | Wall Mount |

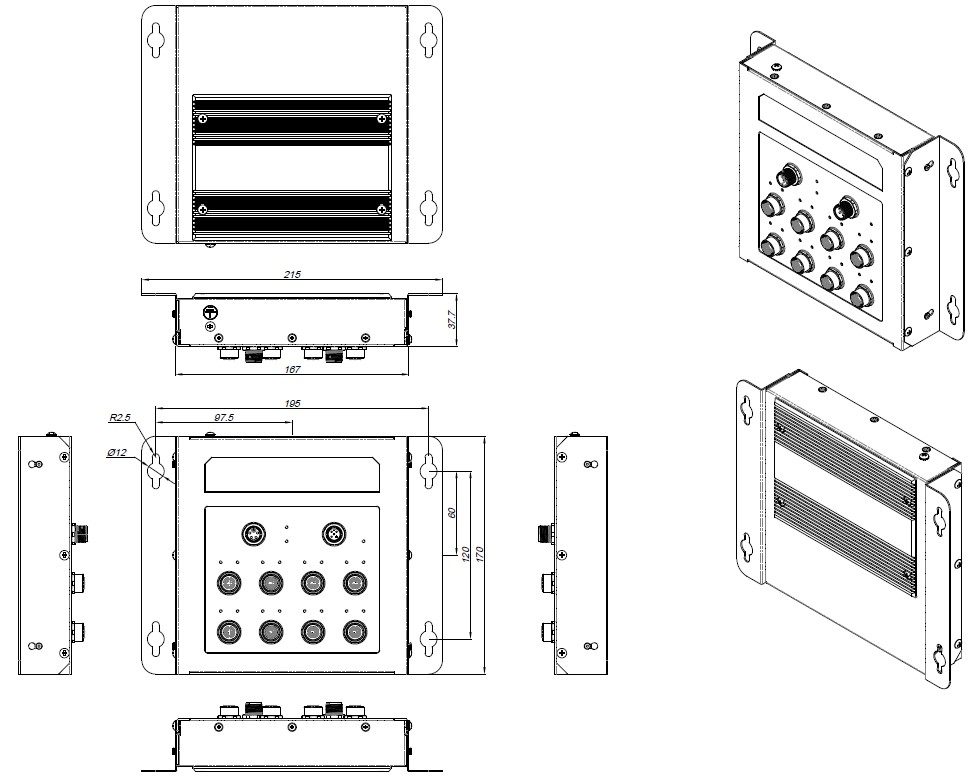

Dimensions (Unit: mm)
