Ethernet Connectivity Solutions
PM-3014-2F
Industrial 16-port Gigabit PoE Switch
This Industrial PoE switch is designed with Hardened Ethernet controller and Hardened PoE controller to ensure performance in harsh environment. It is equipped with 14 ports 30Watts Giga TX PSE + 2x1000M SFP. All ports are independent, with a total of 16 ports for easy expansion of your network application. With our Cold-Design technology, it will not only power up your PD and also reduce its excessive heat to a minimum. It has been rigorously tested for your security, surveillance, and telco applications. This unit can also be cascaded/daisy-chained to other devices to cover wider areas through the SFP connection.
Specifications
| IEEE Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE 802.3z 1000Base-X Gigabit Ethernet | |
| IEEE 802.3x Flow Control and Back Pressure, | |
| IEEE 802.3af for PoE | |
| IEEE 802.3at for PoE+ | |
| Switch Architecture | Back-plane (Switching Fabric): 32Gbps |
| Data Processing | Store and Forward |
| Flow Control | IEEE 802.3x Flow Control and Back Pressure |
| Jumbo Frame | 9KB |
| MAC address Table Size | 8K |
| Packet Buffer Size | 4.1Mbits |
| Network Connector | 14 x RJ-45 10/100/1000BaseT(X) auto negotiation, |
| Auto MDI/MDI-X function, Full/Half duplex | |
| 14 x Gigabit POE+ 802.3at/af PSE port, 30W per port | |
| 2 x SFP 1000M | |
| Network Cable | UTP/STP Cat.5e or above Cable |
| EIA/TIA-568 10-ohm (100m) | |
| Fiber Cable (Multi-mode): 50/125um, 62.5/125um | |
| Fiber Cable (Single-mode): 9/125um | |
| Protocol | CSMA/CD |
| LED | PW1 (Green): ON－Power 1 is detected |
| PW2 (Green): ON－Power 2 is detected | |
| PW3 (Amber): ON－Power 3 is detected for Power DIN | |
| RLY (Amber): ON－Connect only PW1 or PW2 | |
| OFF－Both PW1 and PW2 are connected | |
| TX/RJ-45 port: | |
| LNK (Link/Active) (Green): ON－TX port is detected | |
| Flashing －TX data is transmitting/receiving | |
| POE (Amber): ON－PD is detected and PSE is activated | |
| OFF－PD is not detected | |
| SFP Fiber Per port: | |
| Link (Green) | |
| Active (Flashing) | |
| Reserve polarity protection | Present |
| Overload current protection | Present |
| Power Supply | Redundant Dual DC 48V-56V Power Input |
| Power Consumption | 5.76W@48 VDC full load, Without PoE |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1 A @24VDC, |
| Relay in open circuit mode when 2 powers are connected. in short circuit mode when only one power supply is connected | |
| PoE Power | PoE power per port 30watts. |
| Maximum total power 300Watts with 56VDC input, Supports IEEE802.3af/at | |
| Removable Terminal Block | Provide 2 Redundant power , Alarm relay contact ,6 Pin |
| Wire range: 0.34mm2 to 2.5mm2 | |
| Solid wire (AWG): 12-24/14-22 | |
| Stranded wire (AWG): 12-24/14-22 | |
| Torque: 5lb-In/0.5Nm/0.56Nm | |
| Wire Strip length: 7-8mm | |
| Operating Temperature | -40°C to +75°C |
| Operating Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -40°C to 85°C |
| MTBF (mean time between failu | 504,739 hrs (Telcordia (Bellcore), GB) at 50°C |
| Housing | Rugged Metal, IP30 Protection |
| Case Dimension | 155 x 48 x 120 mm (LxWxD) |
| Installation mounting | DIN Rail and Wall Mount options included |

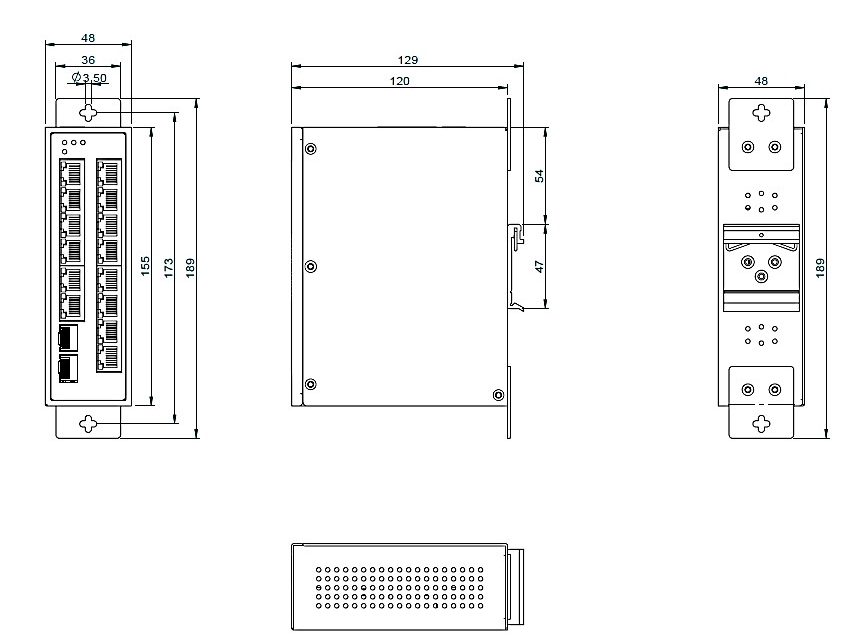

Dimensions (Unit: mm)
